HS-7775MG Digital Low Profile MG Coreless

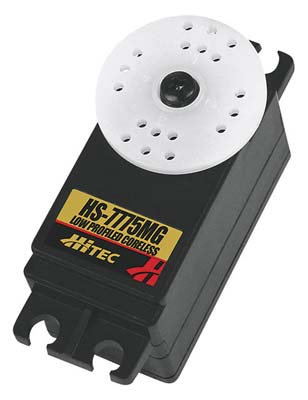

This is the Hitec HS-7775MG Low Profile Coreless Programmable Digital Servo.
FEATURES: Low profile coreless motor
Durable metal gears with dual ball bearings
Programmable
Water and dust tight
For use with EP cars, 1/10 scale GP cars, 30-90 class GP helis and
600 over class EP Helis
INCLUDES: One HS-7775MG Low Profile Coreless Programmable Digital Servo
One 1" (25mm) Round Servo Horn
One 1 3/4" (44mm) Servo Horn
One 1 3/8" (34mm) Servo Horn
One Large X Servo Horn 1 3/4" (44.5mm) end to end
One Small X Servo Horn 1 1/4" (31.75mm) end to end
Four 2x14mm Mounting Screws
Four Brass Eyelets
Four Black Rubber Vibration Isolators
Plastic Case and Programming Instruction Sheet
Hitec Decals
SPECS: Operating Speed: 0.12sec/60° at 4.8V
Output Torque: 7.2kg.cm (99.98oz.in) at 4.8V
Weight: 49g (1.72oz.)
Size: 40.4mm x 21mm x 25.4mm (1.59" x 0.82" x 1.0")
