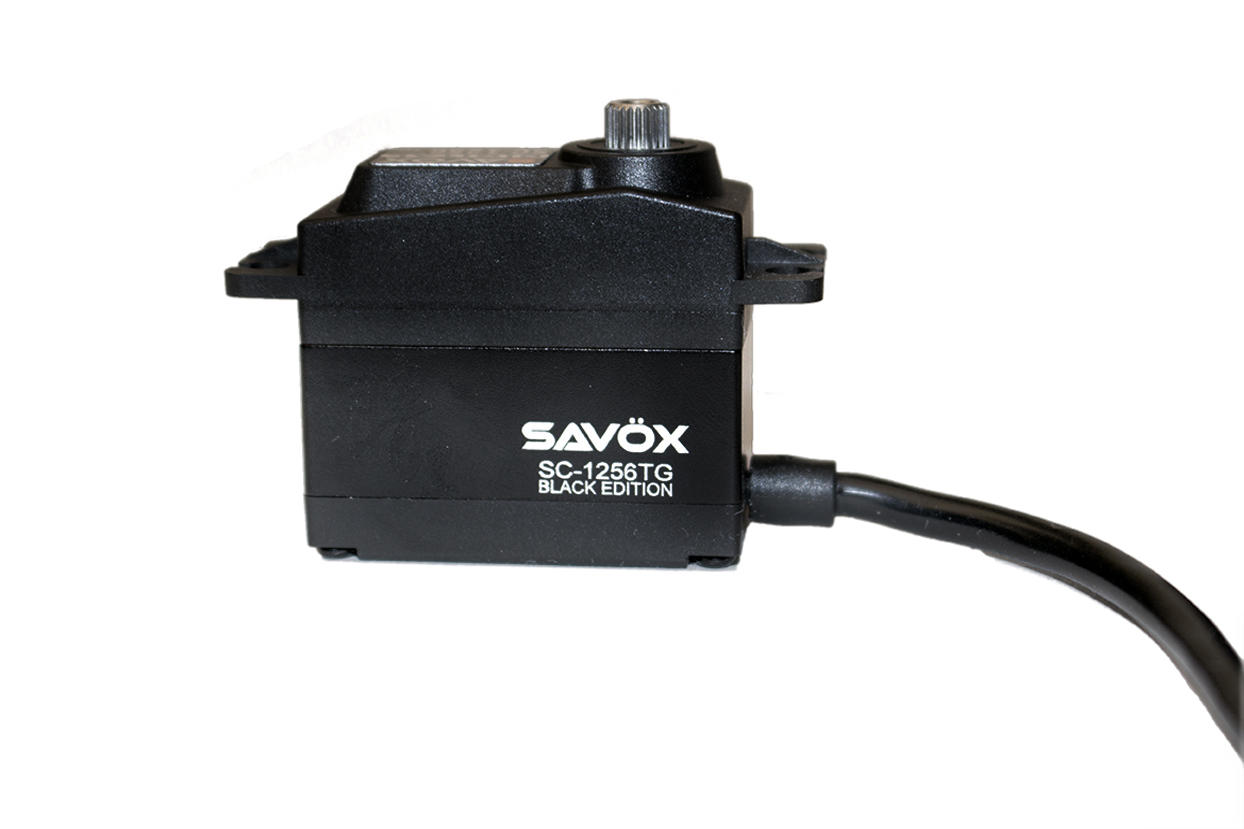

SAVSC1256TG-BE
BLACK EDITION STANDARD SIZE CORELESS DIGITAL SERVO .15/277
"The sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire. It pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC-1256TG sports titanium and metal gears to keep things strong and running smooth.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green � from materials to production, these servos are environmentally friendly.
- Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
Dimensions(mm): | 40.3x20.2x37.2 |
Weight(g): | 52.4 |
Speed(@4.8V sec/60): | .18 |
Torque(@4.8V oz-in): | 222.2 |
Speed(@6.0V sec/60): | .15 |
Torque(@6.0V oz-in): | 277.7 |
Gear: | Titanium & Aluminum |
Bearing: | 2BB |
Case: | Aluminum |
Spline: | 25 Tooth |
